In This Project, we are Developing and Deploying a video streaming application on EC2 using Docker and AWS Developers Tools.

CodeCommit: For Source Code Management
CodeBuild: For building and testing our code in a serverless fashion
CodeDeploy: To deploy our code
CodePipeline: To streamline the CI/CD pipeline
System Manager: To store Parameters
DockerHub: To store Docker Images in a Repository
Identity and Access Management (IAM) for creating a Service Role
S3 for artifact storing
EC2 for Deployment

Clone this Repository

git clone https://github.com/NotHarshhaa/DevOps-Projects.git

Project Architecture

Setting Up CodeCommit

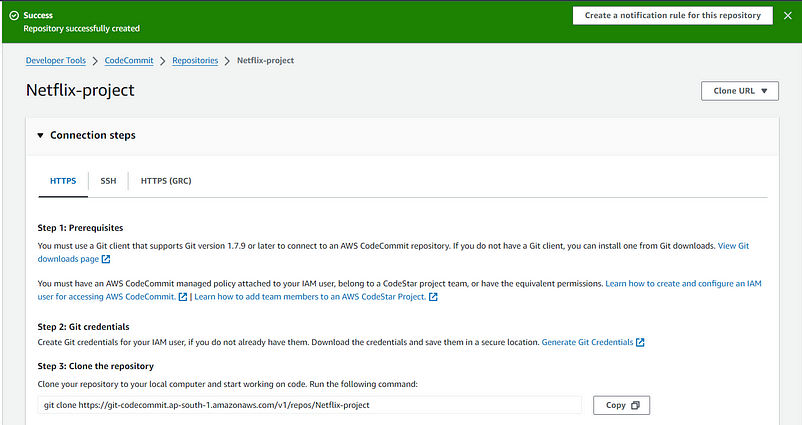

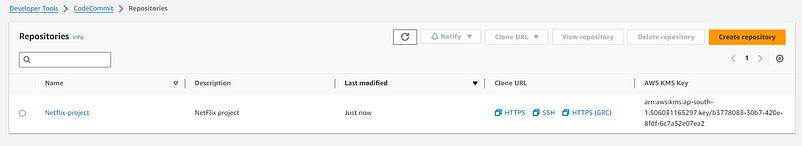

Create a Repository

Create IAM User:

Go to the IAM console and create a user.
Click on Create User -> User details -> Next.
Add Permission for full access to CodeCommit.

Click on Create for the user.
Click on the user and go to the security credentials section
Now we are going to create SSH credentials for this user.
Go to the terminal and run this command

ssh-keygen

Keep all the default values.
Copy the public key using cat ~/.ssh/id_rsa.pub. Paste it into the security credentials, and SSH public key for the CodeCommit section, and copy the SSH key id.
Go back to the repository and copy the URL for the git connection.
Now run

cd ~/.ssh
touch config

Host git-codecommit.*.amazonaws.com
User <paste the id of ssh key (can find after you paster your key in aws )-> IdentityFile ~/.ssh/id_rsa
Now we can connect to this repo.
Run this command now

git clone <SSH URL>

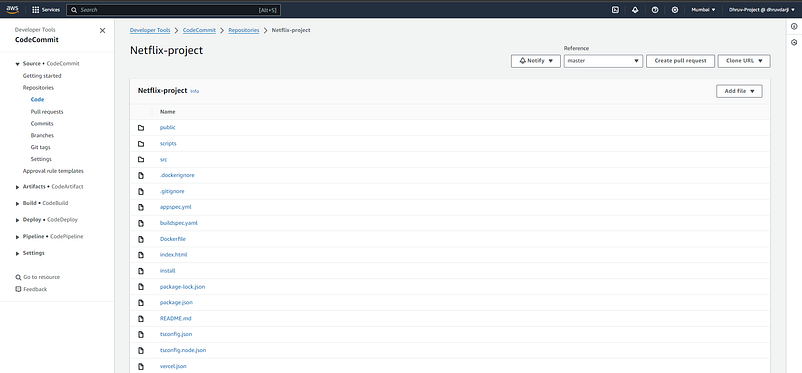

Now copy all the content from my git repository to your code commit repository.
And do a git push.

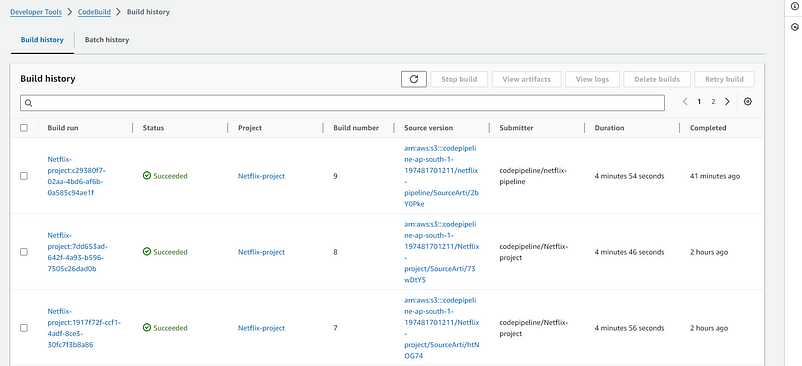

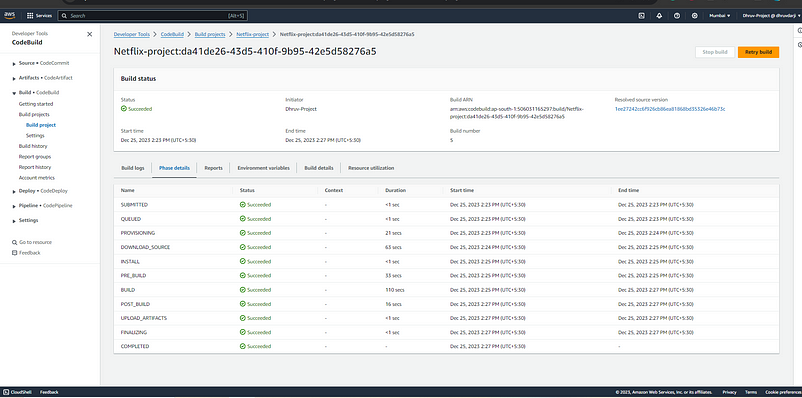

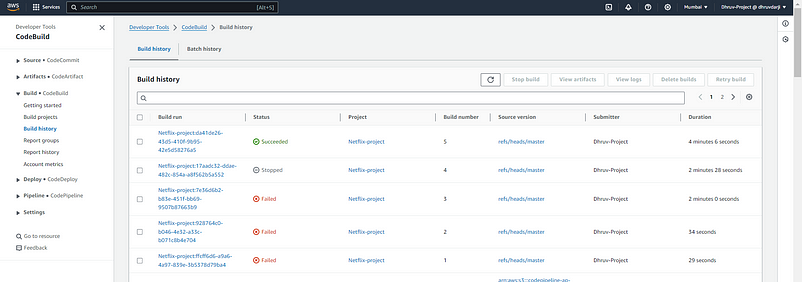

Setting Up CodeBuild

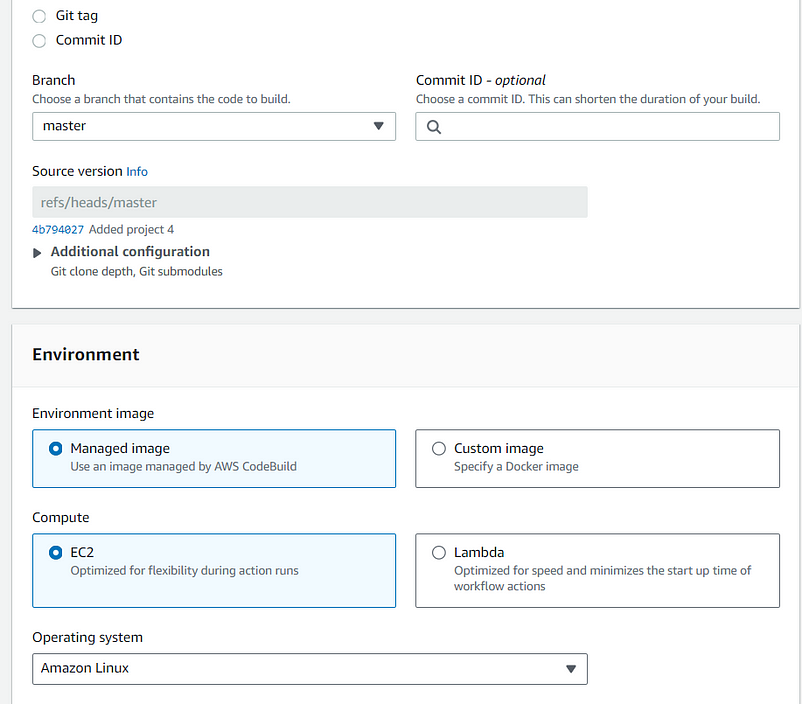

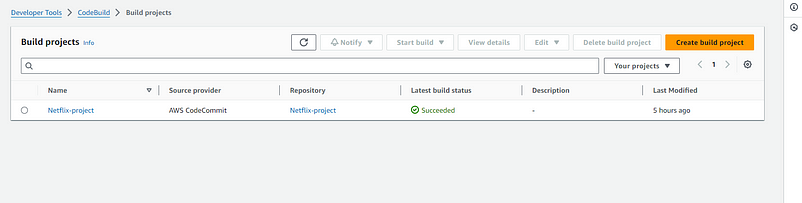

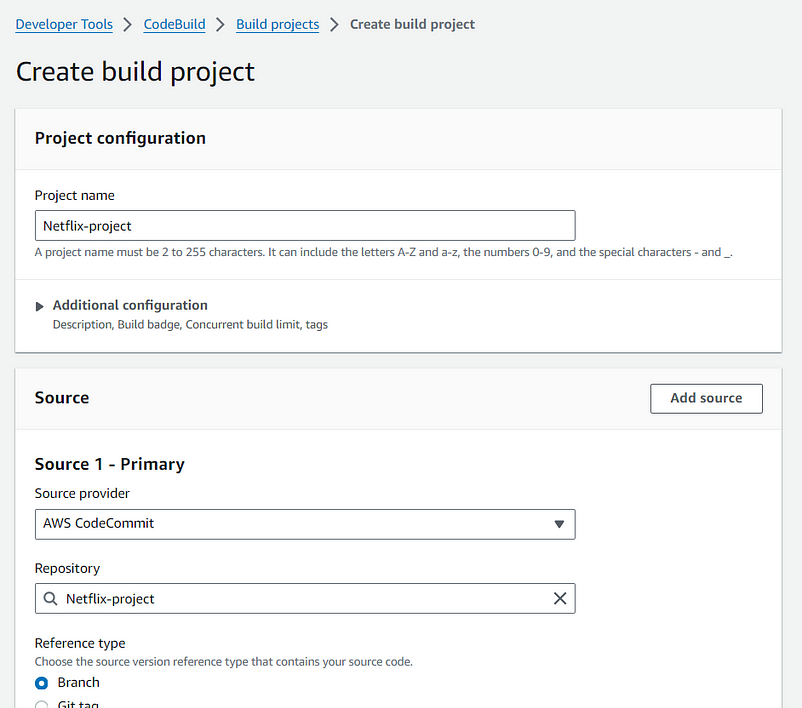

Click on Create build project
Follow this steps

CodeBuild will need buildspec.yml to build a project.
The buildspec.yml file is in the repository root folder.

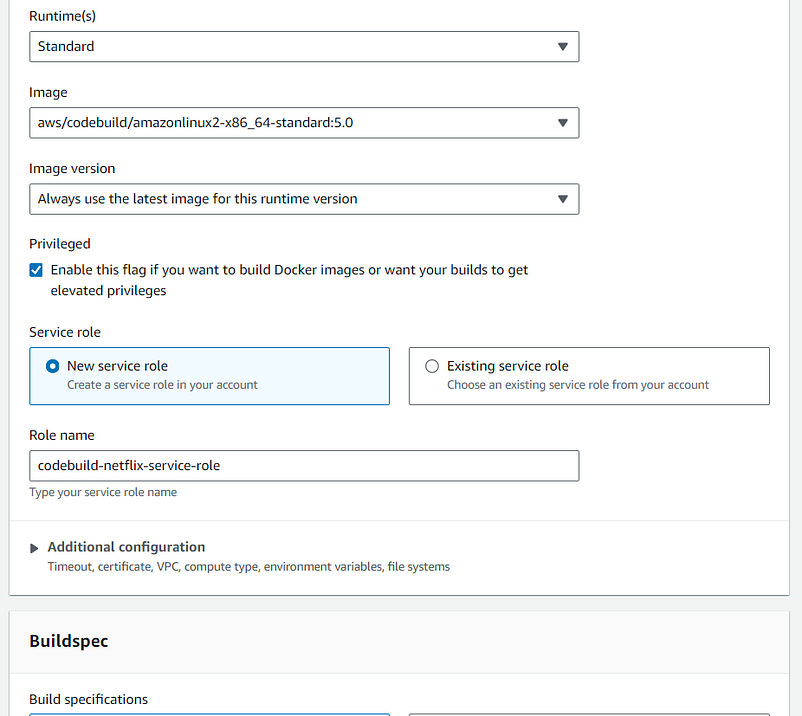

Also, This project will containerize so that select the Enable this flag if you want to build Docker images or want your builds to get elevated privileges.

In this project, we will build and push a Docker image to the DockerHub repository.
So, We need DockerHub credentials like Username and Password.
Also, we are using a free API to consume movie/TV data in this Project. TMDB.

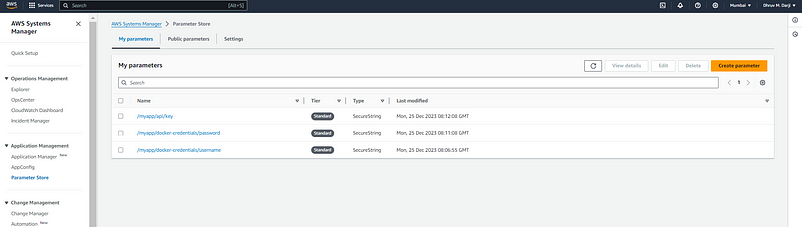

Using `AWS System Manager` for storing secrets

Goto AWS System Manager dashboard.
Click on Parameter Store -> Create parameter
In Parameter details

Add DockerHub Username

Name: /myapp/docker-credentials/username

Type: SecureString

Value: Add Your DockerHub Username

Add DockerHub Password

Name: /myapp/docker-credentials/password

Type: SecureString

Value: Add Your DockerHub Password or secret token

Add TMDB API Key

Name: /myapp/api/key

Type: SecureString

Value: Add Your TMDB API key

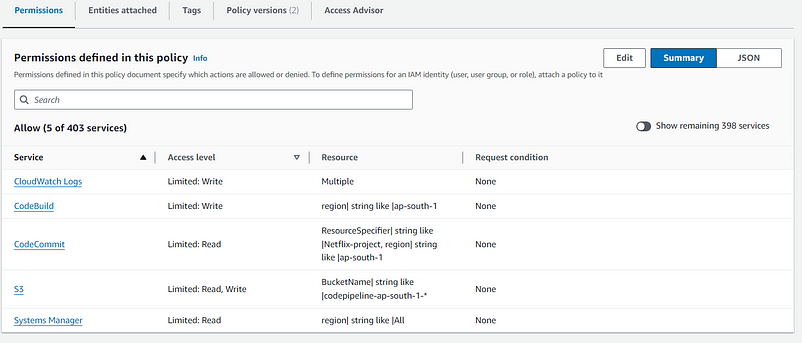

Also, Add Permission in CodeBuild Created Role to assess Parameters from CodeBuild to System Manager
For this, Create an inline policy.

{
            "Sid": "Statement1",
            "Effect": "Allow",
            "Action": [
                "ssm:GetParameters"
            ],
            "Resource": [
                "arn:aws:ssm:*:{AWS Account ID 12 Digit}:parameter/*"
            ]
        }

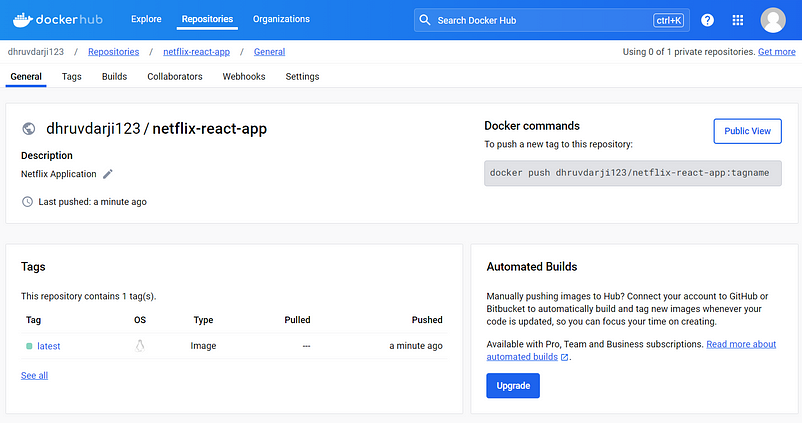

DockerHub Repository

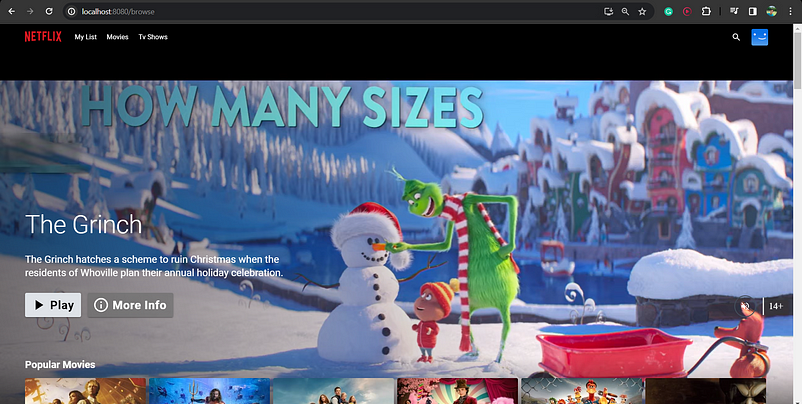

Just for Test
Pull this Docker Image is locally using docker run -n netflix -p 8080:80 dhruvdarji123/netflix-react-app

Build Artifact store in S3 Bucket

In the CodeBuild console Click on Edit button -> Artifacts -> Type: “S3” -> put Uplode Location.

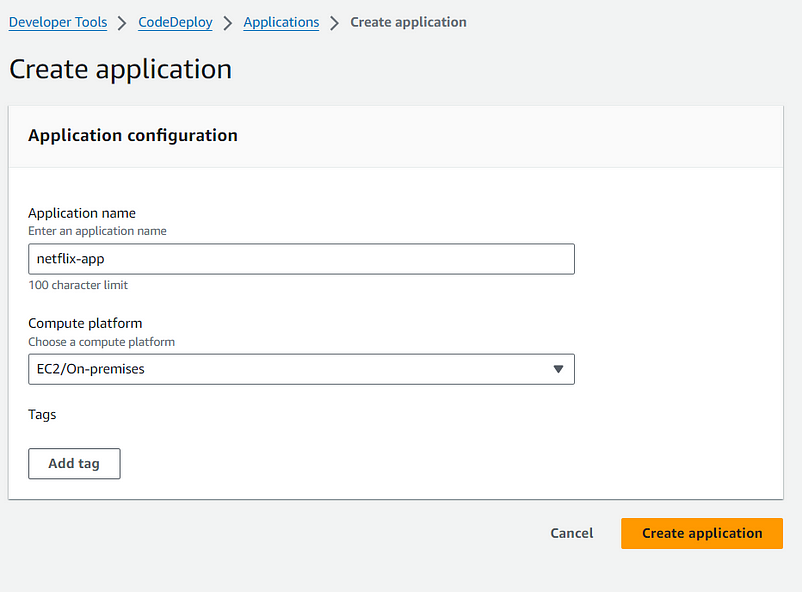

Create CodeDeploy Application

Create Application and Compute platform is EC2/On-premises

Create Service role (Give permissions -

1.AmazonEC2FullAccess

2.AmazonEC2RoleforAWSCodeDeploy

3. AmazonS3FullAccess

4.AWSCodeDeployeFullAccess

5.AWSCodeDeployRole

6.AmazonEC2RoleforAWSCodeDeployLimitaccesstoS3

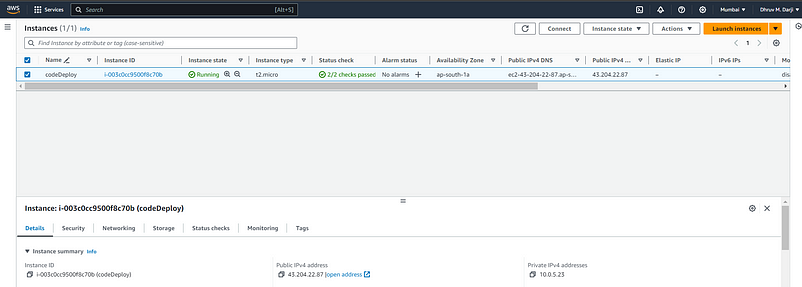

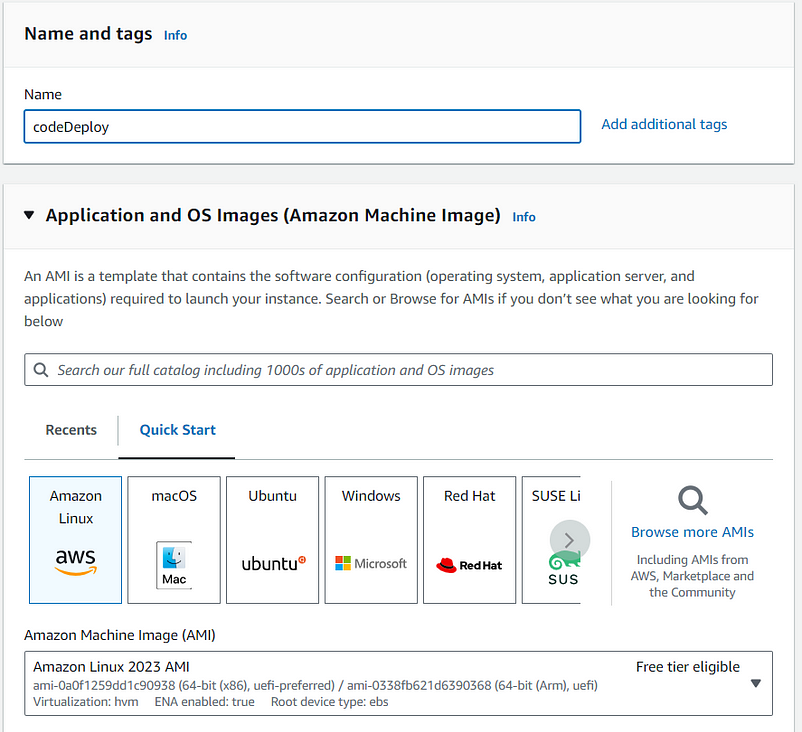

Create EC2 instance

Click Launch Instances

Amazon Linux -> t2.micro
Also, Create a Service Role for EC2 to access s3 & CodeDeploy
Goto IAM Dashboard -> Create Role -> Service Role -> EC2

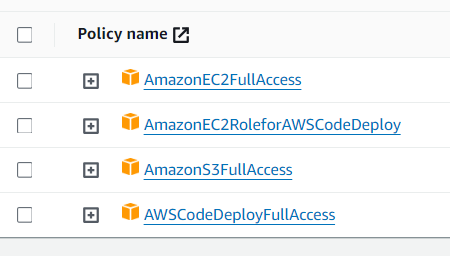

Add this permission

AmazonEC2FullAccess
AmazonEC2RoleforAWSCodeDeploy
AmazonS3FullAccess
AWSCodeDeployFullAccess

Give Role name -> Click on Create Role

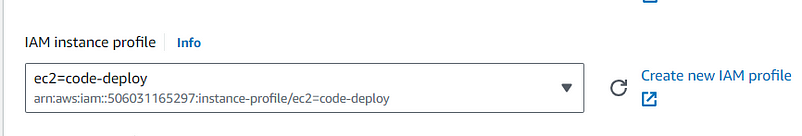

Give This Service Role here.

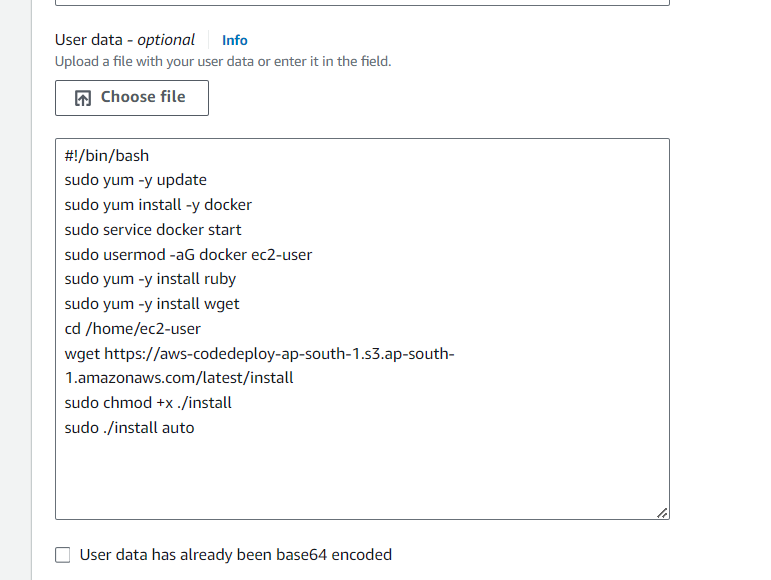

Add this Script to the User Data section.
Or Just run it manually.
For Amazon Linux

#!/bin/bash
sudo yum -y update
sudo yum install -y docker
sudo service docker start
sudo usermod -aG docker ec2-user
sudo yum -y install ruby
sudo yum -y install wget
cd /home/ec2-user
wget https://aws-codedeploy-ap-south-1.s3.ap-south-1.amazonaws.com/latest/install
sudo chmod +x ./install
sudo ./install auto

For Ubuntu

#!/bin/bash
sudo apt update
sudo install docker.io
sudo apt install ruby-full
wget cd /home/ubuntu wget https://aws-codedeploy-ap-south-1.s3.ap-south-1.amazonaws.com/latest/install
chmod +x ./install
sudo ./install auto
sudo service codedeploy-agent status

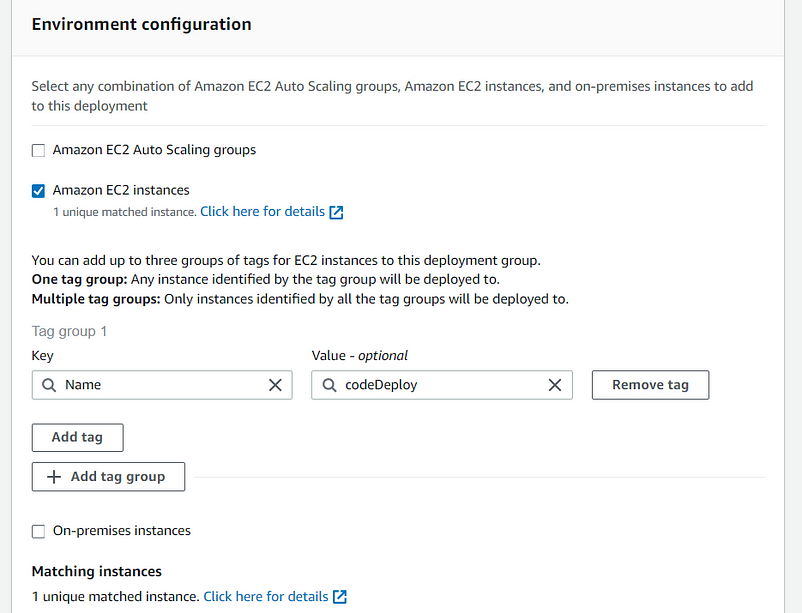

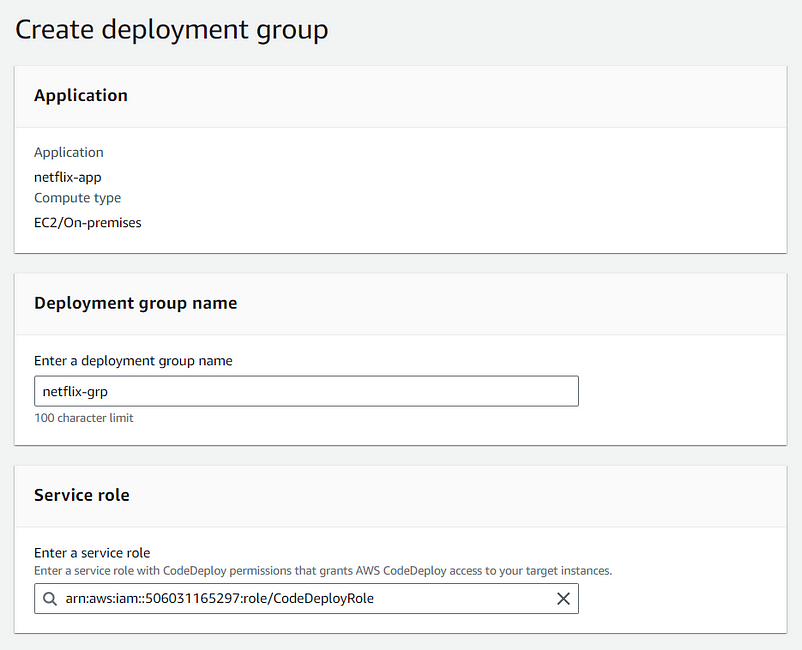

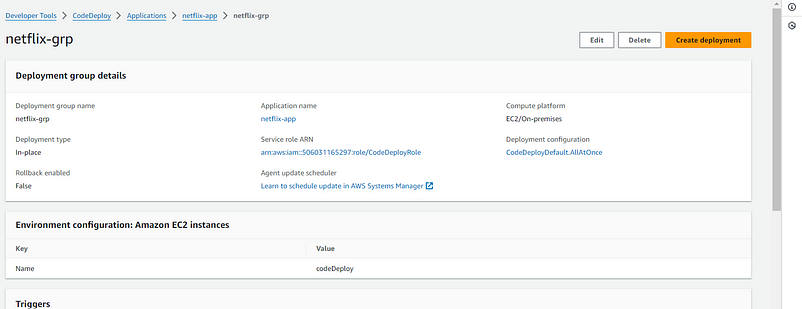

Create CodeDeploy Group

Create a CodeDeploy Group using the following Steps.

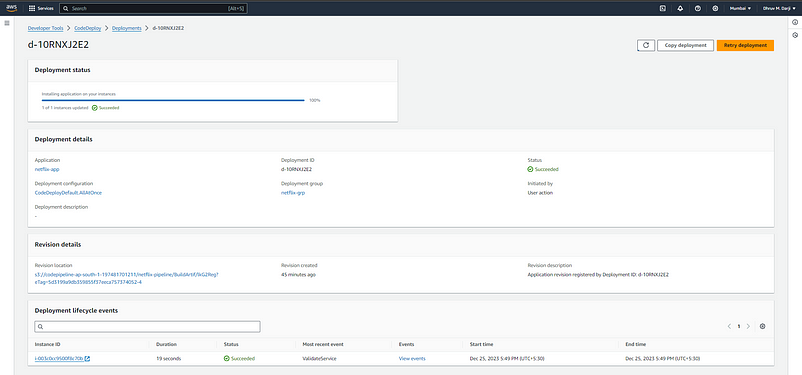

Click On Create Deployment

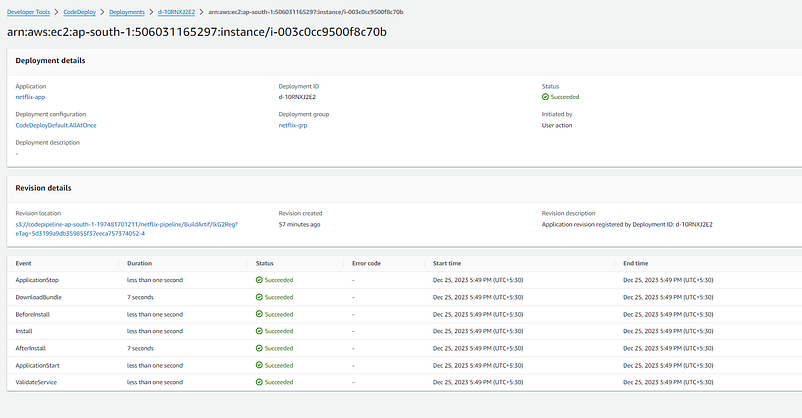

Start Deployment

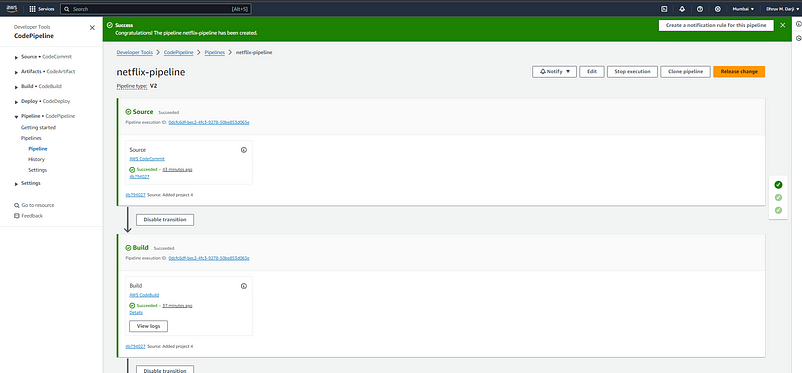

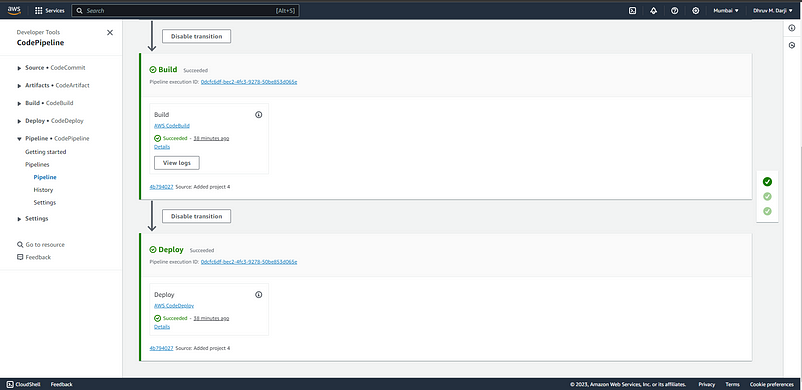

Create CodePipeline

Step 1: Choose pipeline setting -> PipelineName > Service role
Step 2: Add source stage -> CodeCommit > RepoName > BranchName > Select CodePipeline periodically for changes(For automation)
Step 3: Add build stage -> BuildProvider > Region > ProjectName > Single build
Step 4: Add deploy stage -> DeployProvider > Region > AppName > Deployment group
Step 5: Review
