DevOps Project-36: Deploying a Production-Ready 3-Tier Application (React + Flask + Postgres) on AWS EKS

banner

I'll deploy a detailed 3-tier application on an EKS cluster. The application consists of a React frontend for the user interface, a Flask backend API for business logic, and a private connection to an RDS PostgreSQL database for persistent storage.

To expose the application publicly, I'll implement the AWS Load Balancer Controller to automatically provision and configure an Application Load Balancer through Kubernetes Ingress resources. I will use Kubernetes Secrets to store sensitive database credentials and ConfigMaps for configuration.

Before deploying the backend service, I'll run database migrations using a Kubernetes Job, ensuring the schema is properly initialized. To simplify database connectivity, I'll utilize an External Service for the RDS instance, leveraging Kubernetes' DNS-based service discovery to maintain clean application configuration.

Why the heck Kubernetes?

If you're in the tech space in 2025, you must have heard the term Kubernetes. If you haven't, then something isn't right — check if you've been sleeping for the last decade!

Jokes apart, Kubernetes has become an incredibly popular tool for running large-scale, containerized applications or microservices with ease. If you want to stay relevant in your job as a DevOps engineer, SRE, or developer, you must know how to work with Kubernetes.

Setting up and running Kubernetes can be complex, which is why most popular public cloud providers offer Kubernetes managed services. The most polular ones are EKS (AWS), GKE (GCP), and AKS (Azure).

I will use EKS, AWS's managed Kubernetes service, to deploy my 3-tier application. EKS provides you with a managed Kubernetes control plane and gives you options to run your workload exactly how you want.

You have 3 options to choose to run your workload in EKS:

Managed Node Group — AWS manages the nodes, scaling, updates, etc.
Self-managed node group — You manage the nodes, set up the autoscaling, patch the nodes, etc. These are useful when you want to configure the nodes for your needs (security, compliance) and choose when and how to patch your cluster nodes.
Fargate Nodes — Run your workload without EC2 nodes using a fargate profile (AWS manages everything for you). This has limitations as you cannot use persistent volumes with Fargate; it only supports EFS.

I will use EKSCTL utility to set up the EKS cluster with Managed node group

Creating EKS cluster with EKSCTL

You must install the EKSCTL, AWS CLI, Kubectl, and Helm to follow along in the blog post, and Also the credentials for your AWS accounts to create the resources.

Note: I have kept the complete code for backend, frontend, and k8s manifest files in my public GitHub repo.

# EKS ctl command to build an EKS cluster with a managed node group
# with 2 node(min:1, max: 3 nodes as autoscaling)

eksctl create cluster \
  --name Akhilesh-cluster \
  --region eu-west-1 \
  --version 1.31 \
  --nodegroup-name standard-workers \
  --node-type t3.medium \
  --nodes 2 \
  --nodes-min 1 \
  --nodes-max 3 \
  --managed

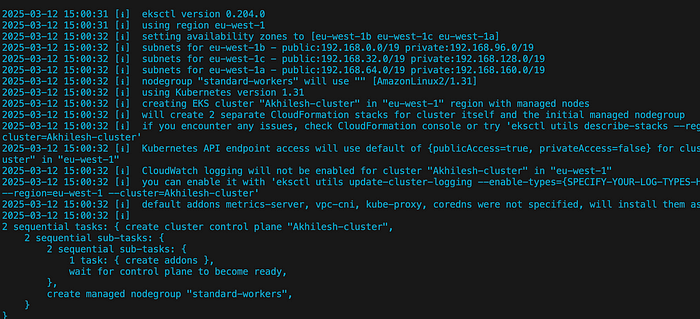

When we run EKSCTL commands, it will run a cloudformation stack in the backend to configure the resources, the EKS cluster in this case.

None

This will create a new VPC, subnets, Nat gateway, and an EKS cluster with a managed node group.

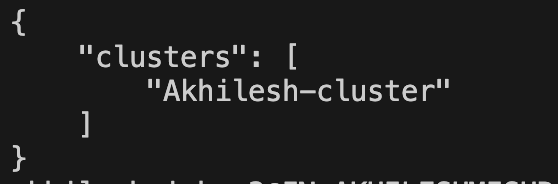

List the cluster

aws eks list-clusters

None

Setting up the cluster config to access the cluster from the local machine.

export cluster_name=Akhilesh-cluster # Name of the cluster
echo $cluster_name

# Configure the kube config
aws eks update-kubeconfig --name $cluster_name --region eu-west-1

# Get the current context
kubectl config current-context

None

Now you can connect to the EKS cluster using the kubectl command.

Note: Make sure you have installed Kubectl CLI on your local machine.

Kubectl to connect to EKS cluster

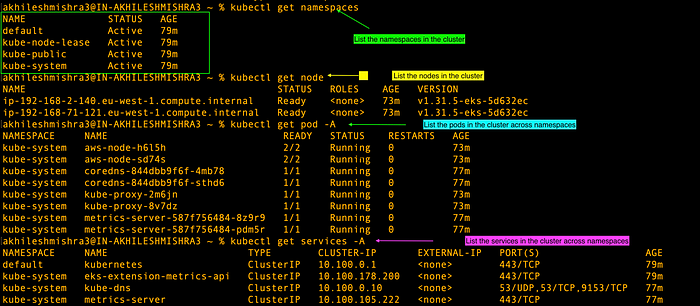

Let's run some commands to see the status of the cluster

kubectl get namespaces
kubectl get node
kubectl get pod -A
kubectl get services -A

None

Deploying a 3-tier application on the EKS cluster

For the blog post, I have built an app with Flask backend that connects to an RDS instance in the backend and a React frontend.

Creating RDS postgres instance

I will create a PostgreSQL RDS instance in the same VPC as the EKS cluster. I will use the private subnets from the VPC to deploy my RDS instance.

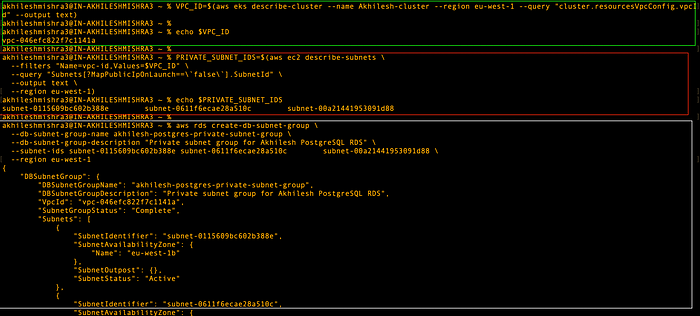

Creating a DB subnet group

# VPC ID associated with your cluster
aws eks describe-cluster --name Akhilesh-cluster --region eu-west-1 --query "cluster.resourcesVpcConfig.vpcId" --output text

# Get VPC ID
VPC_ID=$(aws eks describe-cluster --name Akhilesh-cluster --region eu-west-1 --query "cluster.resourcesVpcConfig.vpcId" --output text)

# Find private subnets (subnets without a route to an internet gateway)
PRIVATE_SUBNET_IDS=$(aws ec2 describe-subnets \
  --filters "Name=vpc-id,Values=$VPC_ID" \
  --query "Subnets[?MapPublicIpOnLaunch==\`false\`].SubnetId" \
  --output text \
  --region eu-west-1)

# Create a subnet group using only private subnet
aws rds create-db-subnet-group \
  --db-subnet-group-name akhilesh-postgres-private-subnet-group \
  --db-subnet-group-description "Private subnet group for Akhilesh PostgreSQL RDS" \
  --subnet-ids subnet-0115609bc602b388e subnet-0611f6ecae28a510c subnet-00a21441953091d88 \
  --region eu-west-1

None

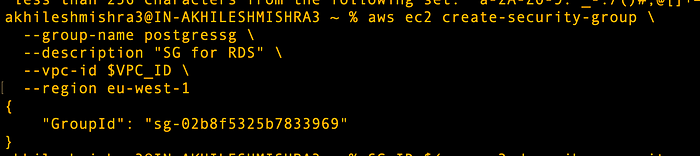

Create a security group that

# Create security group for rds
aws ec2 create-security-group \
  --group-name postgressg \
  --description "SG for RDS" \
  --vpc-id $VPC_ID \
  --region eu-west-1

None

Allow the cluster nodes to reach RDS on port 5432. For security reasons, we should only open the ports from a particular security group instead of all (0.0.0.0/0)

Creating the security group ingress rule to allow inbound on port 5432 from Cluster SG

# Store the security group ID
SG_ID=$(aws ec2 describe-security-groups \
  --filters "Name=group-name,Values=postgressg" "Name=vpc-id,Values=$VPC_ID" \
  --query "SecurityGroups[0].GroupId" \
  --output text \
  --region eu-west-1)

# get the SG attached with cluster nodes:
NODE_SG=$(aws eks describe-cluster --name Akhilesh-cluster --region eu-west-1 \
  --query "cluster.resourcesVpcConfig.securityGroupIds[0]" --output text)

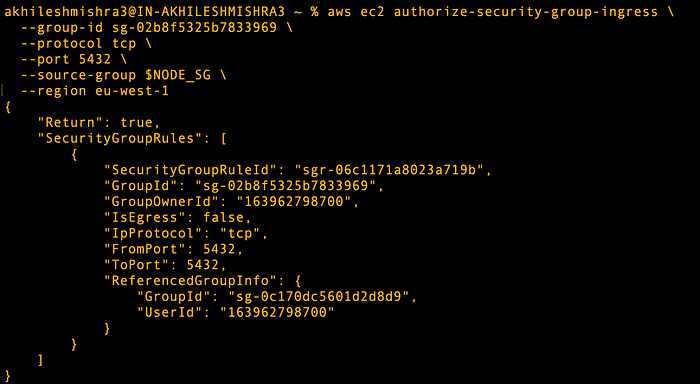

# Allow cluster to reach rds on port 5432
aws ec2 authorize-security-group-ingress \
  --group-id sg-02b8f5325b7833969 \
  --protocol tcp \
  --port 5432 \
  --source-group $NODE_SG \
  --region eu-west-1

None

Creating an RDS instance that can only be privately accessed.

# create the PostgreSQL RDS instance in the private subnet group
aws rds create-db-instance \
  --db-instance-identifier akhilesh-postgres \
  --db-instance-class db.t3.small \
  --engine postgres \
  --engine-version 15 \
  --allocated-storage 20 \
  --master-username postgresadmin \
  --master-user-password YourStrongPassword123! \
  --db-subnet-group-name akhilesh-postgres-private-subnet-group \
  --vpc-security-group-ids $SG_ID \
  --no-publicly-accessible \
  --backup-retention-period 7 \
  --multi-az \
  --storage-type gp2 \
  --region eu-west-1

None

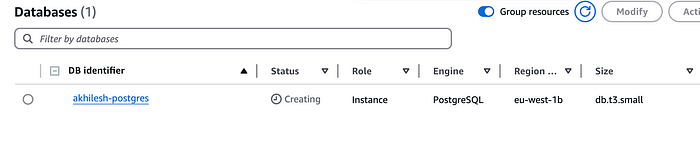

You can see that RDS instance is getting created.

None

The RDS will take some time to be ready. Once it is, you can copy the RDS details.

USERNAME: postgresadmin PASSWORD: YourStrongPassword123! DB_HOST: akhilesh-postgres.cveph9nmftjh.eu-west-1.rds.amazonaws.com (You can find this in the RDS instance endpoint configuration) DB_NAME: postgres (default database name since we did not provide a custom name)

Deploying a 3-tier application on EKS

I have built the application images on Docker Hub, will use these images.

Backend image: livingdevopswithakhilesh/devopsdozo:backend-latest

Frontend image: livingdevopswithakhilesh/devopsdozo:frontend-latest

Clone the repo

git clone https://github.com/NotHarshhaa/DevOps-Projects/DevOps-Project-36/3-tier-app-eks
cd 3-tier-app-eks/k8s

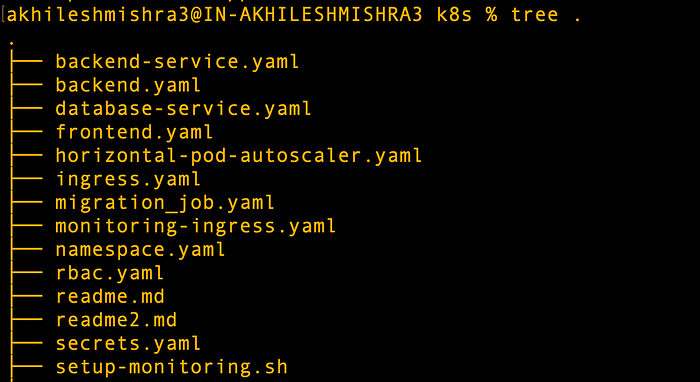

tree .

None

This is the repo with all the code.

Create a namespace with the name `3-tier-app-eks`

A namespace in Kubernetes provides a mechanism to isolate groups of resources within a cluster. This allows teams to work in their own virtual cluster without worrying about resource naming conflicts.

kubectl apply -f namespace.yaml

None

Creating a service that points to the RDS endpoint

apiVersion: v1
kind: Service
metadata:
  name: postgres-db
  namespace: 3-tier-app-eks
  labels:
    service: database
spec:
  type: ExternalName
  externalName:  akhilesh-postgres.cveph9nmftjh.eu-west-1.rds.amazonaws.com
  ports:
  - port: 5432
kubectl apply -f database-service.yaml

A service is an abstraction that defines a logical set of pods and a policy to access them. Services enable network connectivity to pod sets that match specific selector criteria, regardless of where they're running.

None

Now we can use this service to point to RDS, if we need to update the cluster, we can update this service and everything will stay the same.

Now we can use the DNS name for RDS using service discovery. it follows the format service_name.namespace.svc.cluster.local

We should be able to use postgres-db.3-tier-app-eks.svc.cluster.local to connect to the database

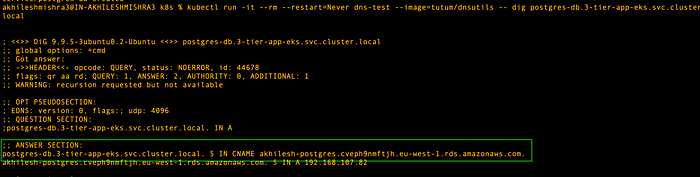

If you want to test the DNS, then run this command

kubectl run -it --rm --restart=Never dns-test --image=tutum/dnsutils \
 -- dig postgres-db.3-tier-app-eks.svc.cluster.local

None

Testing the RDS connectivity

If for some reason, you see issues on your backend, you can troubleshoot with the below commands. You can validate if you can connect to the DB from the k8s cluster and other things.

## to check the db connection for troubleshooting
# Run a postgres pod and access the shell
kubectl run debug-pod --rm -it --image=postgres -- bash
# run this command
PGPASSWORD=YourStrongPassword123! psql -h \
postgres-db.3-tier-app-eks.svc.cluster.local -U postgresadmin -d postgres
# run query
SELECT COUNT(*) FROM topics;

I see the issue where I am not able to connect to the DB from the cluster. Issue could be related to the security group.

None

I will open all IPs to see if that fixes the issue.

None

Creating a secret and configmaps with RDS DB details

Secrets are Kubernetes objects that store sensitive information such as passwords, OAuth tokens, and SSH keys. ConfigMaps store non-confidential configuration data in key-value pairs that can be consumed by pods as environment variables, command-line arguments, or configuration files in a volume.

Kubernetes allows you to store secrets in base64 encoded format. If you want to create a base64 encoding for username, password. I will be mounting secrets and configmap as environment variables in the application.

echo 'postgresadmin' | base64
echo 'YourStrongPassword123!' | base64
echo 'postgresql://postgresadmin:YourStrongPassword123!@postgres-db.3-tier-app-eks.svc.cluster.local:5432/postgres' | base64

None

secrets.yaml

apiVersion: v1
kind: Secret
metadata:
  name: db-secrets
  namespace: 3-tier-app-eks
type: Opaque
data:
  DB_USERNAME: cG9zdGdyZXNhZG1pbg==
  DB_PASSWORD: WW91clN0cm9uZ1Bhc3N3b3JkMTIzIQ==
  SECRET_KEY: ZGV2LXNlY3JldC1rZXk=
  DATABASE_URL: cG9zdGdyZXNxbDovL3Bvc3RncmVzYWRtaW46WW91clN0cm9uZ1Bhc3N3b3JkMTIzIUBwb3N0Z3Jlcy1kYi4zLXRpZXItYXBwLWVrcy5zdmMuY2x1c3Rlci5sb2NhbDo1NDMyL3Bvc3RncmVz

configmap.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: app-config
  namespace: 3-tier-app-eks
data:
  DB_HOST: "postgres-db.3-tier-app-eks.svc.cluster.local"
  DB_NAME: "postgres"
  DB_PORT: "5432"
  FLASK_DEBUG: "0"

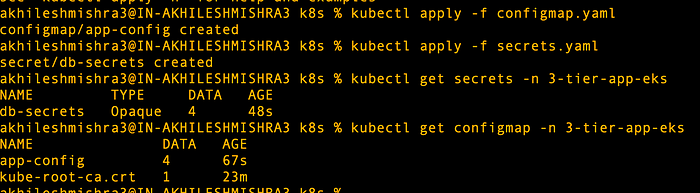

Run these commands

kubectl apply -f configmap.yaml
kubectl apply -f secrets.yaml

None

Running the database migrations job

Before we start our backend Flask API, we need to perform database migrations. We will run this as a Kubernetes job, which will create the database tables and some seed data for the application.

A job in Kubernetes creates one or more pods and ensures they successfully terminate. Jobs are useful for batch processes, data migrations, or one-time tasks that need to run to completion.

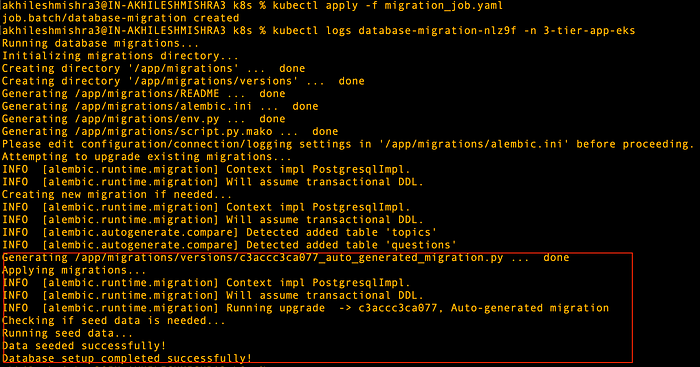

Run the below command to deploy the migration job

kubectl apply -f migration_job.yaml
kubectl get job -A
kubectl get pods -n 3-tier-app-eks
kubectl logs database-migration-nlz9f -n 3-tier-app-eks

None

This migration job will create the database tables and the seed data that your application will have at the start

Start the backend and frontend deployments.

A deployment is a Kubernetes resource that provides declarative updates for pods and replica sets. It allows you to describe an application's life cycle, including which images to use, the number of pods, and how to update them.

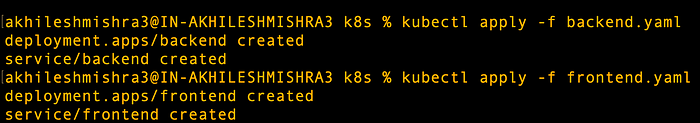

# Creating frontend and backend deployments and services
kubectl apply -f backend.yaml
kubectl apply -f frontend.yaml

None

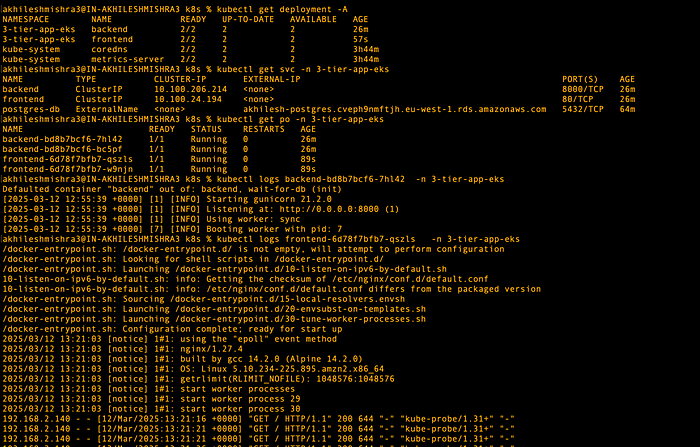

# checking the deployments and services
kubectl get deployment -n 3-tier-app-eks
kubectl get svc -n 3-tier-app-eks
kubectl get po -n 3-tier-app-eks

None

Accessing the application

We have not configured any ingress, but we can access the application by port-forwarding the services (the backend and the front end). Make sure to use multiple tabs, as you need both services to be available via port forwarding.

# port forward backend
kubectl port-forward -n 3-tier-app-eks svc/backend 8000:8000

# port forward the frontend
kubectl port-forward -n 3-tier-app-eks svc/frontend 8080:80

None

You can access the backend API with the command curl http://localhost:8000/api/topics

None

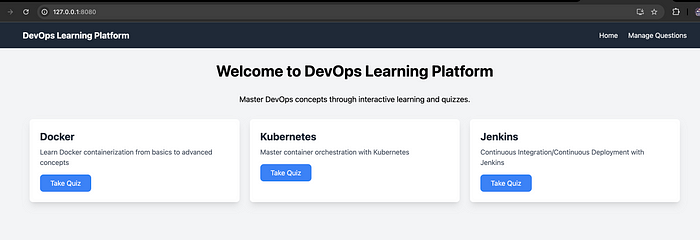

You can access the frontend on localhost on port 8080 127.0.0.1:8080

None

This is a quiz application around devops topics. Seed data only creates a few questions, you can add more questions using the manage question option. I have added sample csv files on the path, 3-tier-app-eks/backend/questions-answers that you can upload to add more questions.

Check the pods' logs for backend and frontend deployment.

kubectl logs -n devops-learning -l app=backend

kubectl logs -n devops-learning -l app=frontend

Configuring the ingress for the application

An ingress is a Kubernetes resource that manages external access to services in a cluster, typically via HTTP/HTTPS. It provides load balancing, SSL termination and name-based virtual hosting.

The AWS Load Balancer Controller automates the creation of AWS Application Load Balancers when Kubernetes Ingress resources are defined. This integration allows seamless traffic routing to your services while leveraging AWS-native features like SSL termination, HTTP/2 support, and web ACLs.

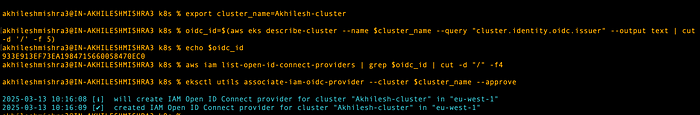

Set up OIDC provider for the EKS cluster to enable IAM roles for service accounts

export cluster_name=Akhilesh-cluster

oidc_id=$(aws eks describe-cluster --name $cluster_name \
--query "cluster.identity.oidc.issuer" --output text | cut -d '/' -f 5)

echo $oidc_id

# Check if IAM OIDC provider with your cluster's issuer ID
aws iam list-open-id-connect-providers | grep $oidc_id | cut -d "/" -f4

# If not, create an OIDC provider
eksctl utils associate-iam-oidc-provider --cluster $cluster_name --approve

# or use console
# -> To create a provider, go to IAM, choose Add provider.
# -> For Provider type, select OpenID Connect.
# -> For Provider URL, enter the OIDC provider URL for your cluster.
# -> For Audience, enter sts.amazonaws.com.
# -> (Optional) Add any tags, for example a tag to identify which cluster is for this provider.
# -> Choose Add provider.

None

Create IAM policy with necessary permissions for the Load Balancer Controller

curl -O https://raw.githubusercontent.com/kubernetes-sigs/aws-load-balancer-controller/v2.11.0/docs/install/iam_policy.json
aws iam create-policy \
    --policy-name AWSLoadBalancerControllerIAMPolicy \
    --policy-document file://iam_policy.json

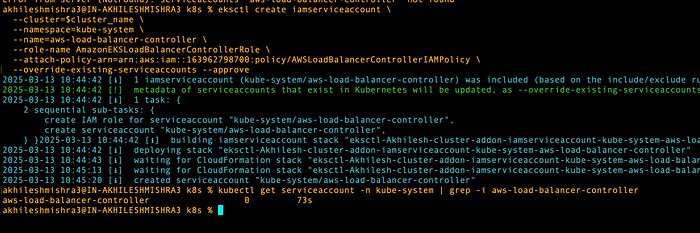

Create IAM service account in Kubernetes with the policy attached

# Use the account id for your account
eksctl create iamserviceaccount \
  --cluster=$cluster_name \
  --namespace=kube-system \
  --name=aws-load-balancer-controller \
  --role-name AmazonEKSLoadBalancerControllerRole \
  --attach-policy-arn=arn:aws:iam::163962758712:policy/AWSLoadBalancerControllerIAMPolicy \
  --approve

# verify its creation
kubectl get serviceaccount -n kube-system | grep -i aws-load-balancer-controller

None

Installing the AWS Load balancer Controller with Helm

# Install the AWS Load Balancer Controller

kubectl apply -k  \
"github.com/aws/eks-charts/stable/aws-load-balancer-controller/crds?ref=master"

# install helm if haven't already
brew install helm # (for mac, google for other platforms)

# Add helm repo for eks charts
helm repo add eks https://aws.github.io/eks-charts
helm repo update

VPC_ID=$(aws eks describe-cluster --name Akhilesh-cluster --region eu-west-1 --query "cluster.resourcesVpcConfig.vpcId" --output text)

helm install aws-load-balancer-controller eks/aws-load-balancer-controller \
  -n kube-system \
  --set clusterName=$cluster_name \
  --set serviceAccount.create=false \
  --set serviceAccount.name=aws-load-balancer-controller \
  --set vpcId=$VPC_ID \
  --set region=eu-west-1

Creating an Ingress class for alb and an Ingress resource to access the frontend service

Configuring Ingress resources with appropriate annotations for routing rules

ingress.yaml

apiVersion: networking.k8s.io/v1
kind: IngressClass
metadata:
  name: alb
  annotations:
    ingressclass.kubernetes.io/is-default-class: "false"
spec:
  controller: ingress.k8s.aws/alb
---
apiVersion: networking.k8s.io/v1
kind: Ingress
metadata:
  name: 3-tier-app-ingress
  namespace: 3-tier-app-eks
  annotations:
    alb.ingress.kubernetes.io/scheme: "internet-facing"
    alb.ingress.kubernetes.io/target-type: "ip"
    alb.ingress.kubernetes.io/healthcheck-path: "/"  # healthcheck path
spec:
  ingressClassName: "alb"
  rules:
  - http:
      paths:
      - path: /api
        pathType: Prefix
        backend:
          service:
            name: backend
            port:
              number: 8000
      - path: /
        pathType: Prefix
        backend:
          service:
            name: frontend
            port:
              number: 80
# Create ingress class and resource
kubectl apply -f ingress.yaml

# Check the ingress and load balancer controller logs
kubectl get ingress -n 3-tier-app-eks
kubectl describe ingress 3-tier-app-ingress -n 3-tier-app-eks

# After ingress creation
kubectl logs -n kube-system -l app.kubernetes.io/name=aws-load-balancer-controller

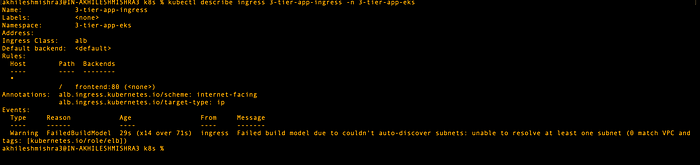

As you can see below, ingress is not able to create an ALB creation as it does not find the subnet with the required tag for application load balancer creation.

None

# delete ingress
kubectl delete ingress 3-tier-app-ingress -n 3-tier-app-eks

# If above doesnt work, use this to force delete
kubectl patch ingress 3-tier-app-ingress -n 3-tier-app-eks -p '{"metadata":{"finalizers":[]}}' --type=merge
kubectl delete ingress 3-tier-app-ingress -n 3-tier-app-eks --grace-period=0 --force

Before you create an ingress resource, make sure you apply the tag Key=kubernetes.io/role/internal-elb,Value=1 to public subnets for the application load balancer.

Note: if you are creating the network load balancers, then add Key=kubernetes.io/role/internal-nlb,Value=1 tag to the subnets where you want to get NLBs.

List the public subnet for the EKS cluster, and apply the tag

# VPC_ID for cluster
VPC_ID=$(aws eks describe-cluster --name Akhilesh-cluster --region eu-west-1 --query "cluster.resourcesVpcConfig.vpcId" --output text)

# verify the vpc id
echo $VPC_ID

# Public subnets for the cluster
aws ec2 describe-subnets --filters "Name=vpc-id,Values=$VPC_ID" "Name=map-public-ip-on-launch,Values=true" \
--query "Subnets[*].{SubnetId:SubnetId,AvailabilityZone:AvailabilityZone,PublicIp:MapPublicIpOnLaunch}"

# Get the list of subnets id's from above commands and run this
# Update the correct subnet id's
aws ec2 create-tags --resources subnet-05c313851d6e027e0 subnet-002f8dde08d2f1643 \
subnet-0f8aabbf5f8538d81 --tags Key=kubernetes.io/role/elb,Value=1

# Verify the tags
aws ec2 describe-subnets --subnet-ids subnet-05c313851d6e027e0 subnet-002f8dde08d2f1643 \
subnet-0f8aabbf5f8538d81 --query "Subnets[*].{SubnetId:SubnetId,Tags:Tags}"

None

Now we can create the ingress resource and it should automatically spin up the Application load balancer.

# Create ingress class and resource
kubectl apply -f ingress.yaml

# Check the ingress and load balancer controller logs
kubectl get ingress -n 3-tier-app-eks
kubectl describe ingress 3-tier-app-ingress -n 3-tier-app-eks

# After ingress creation
kubectl logs -n kube-system -l app.kubernetes.io/name=aws-load-balancer-controller

None

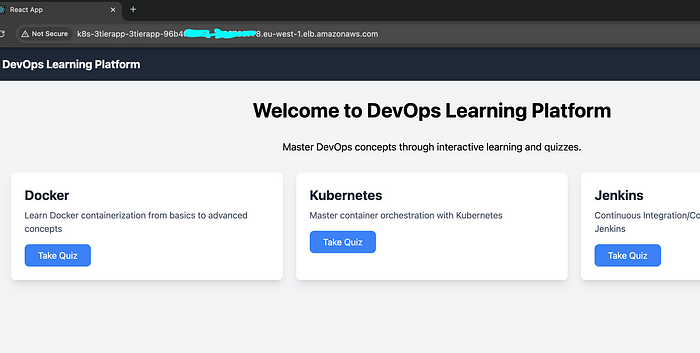

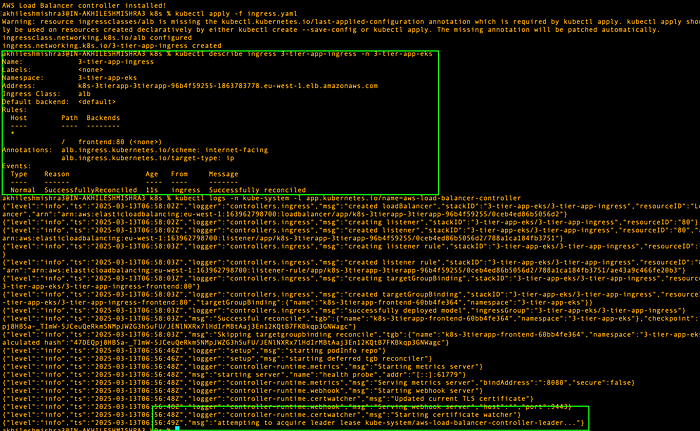

Ingress status shows reconciled, which means it has created the load balancer. You can go to your AWS console where you will see an ALB there. Copy the DNS name for it and paste it in the browser, and you should be able to see your app there.

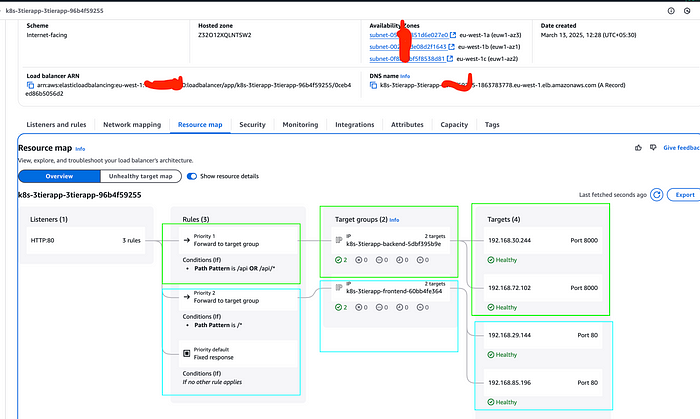

Validate ALB provisioning and test the routing to backend services

None

Mapping the domain with the application to access it publicly

Create a public hosted zone for your registered domain

aws route53 create-hosted-zone \
  --name akhileshmishra.tech \
  --caller-reference $(date +%s) \
  --hosted-zone-config Comment="Public hosted zone for akhileshmishra.tech"

None

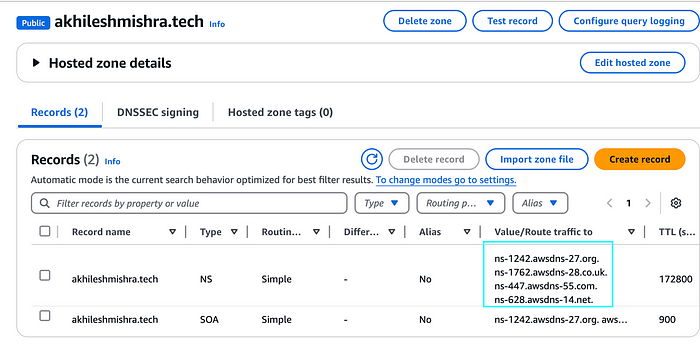

Copy the name servers and update them in your domain (godaddy/namecheap, etc).

Now create an alias route to point your domain/subdomain to the ALB.

# Get the ALB DNS name from the Ingress
ALB_DNS=$(kubectl get ingress 3-tier-app-ingress -n 3-tier-app-eks -o jsonpath='{.status.loadBalancer.ingress[0].hostname}')
echo "ALB DNS Name: $ALB_DNS"

# Get the hosted zone ID for your domain
ZONE_ID=$(aws route53 list-hosted-zones-by-name --dns-name akhileshmishra.tech --query "HostedZones[0].Id" --output text | sed 's/\/hostedzone\///')
echo "Hosted Zone ID: $ZONE_ID"

# Create an A record alias pointing to the ALB
aws route53 change-resource-record-sets \
  --hosted-zone-id $ZONE_ID \
  --change-batch '{
    "Changes": [
      {
        "Action": "UPSERT",
        "ResourceRecordSet": {
          "Name": "app.akhileshmishra.tech",
          "Type": "A",
          "AliasTarget": {
            "HostedZoneId": "Z32O12XQLNTSW2",
            "DNSName": "'$ALB_DNS'",
            "EvaluateTargetHealth": true
          }
        }
      }
    ]
  }'

It takes some time for the DNS change to reflect, try pasting the subdomain (app.akhileshmishra.tech in my case) in your browser after some time, it should show you the application.
